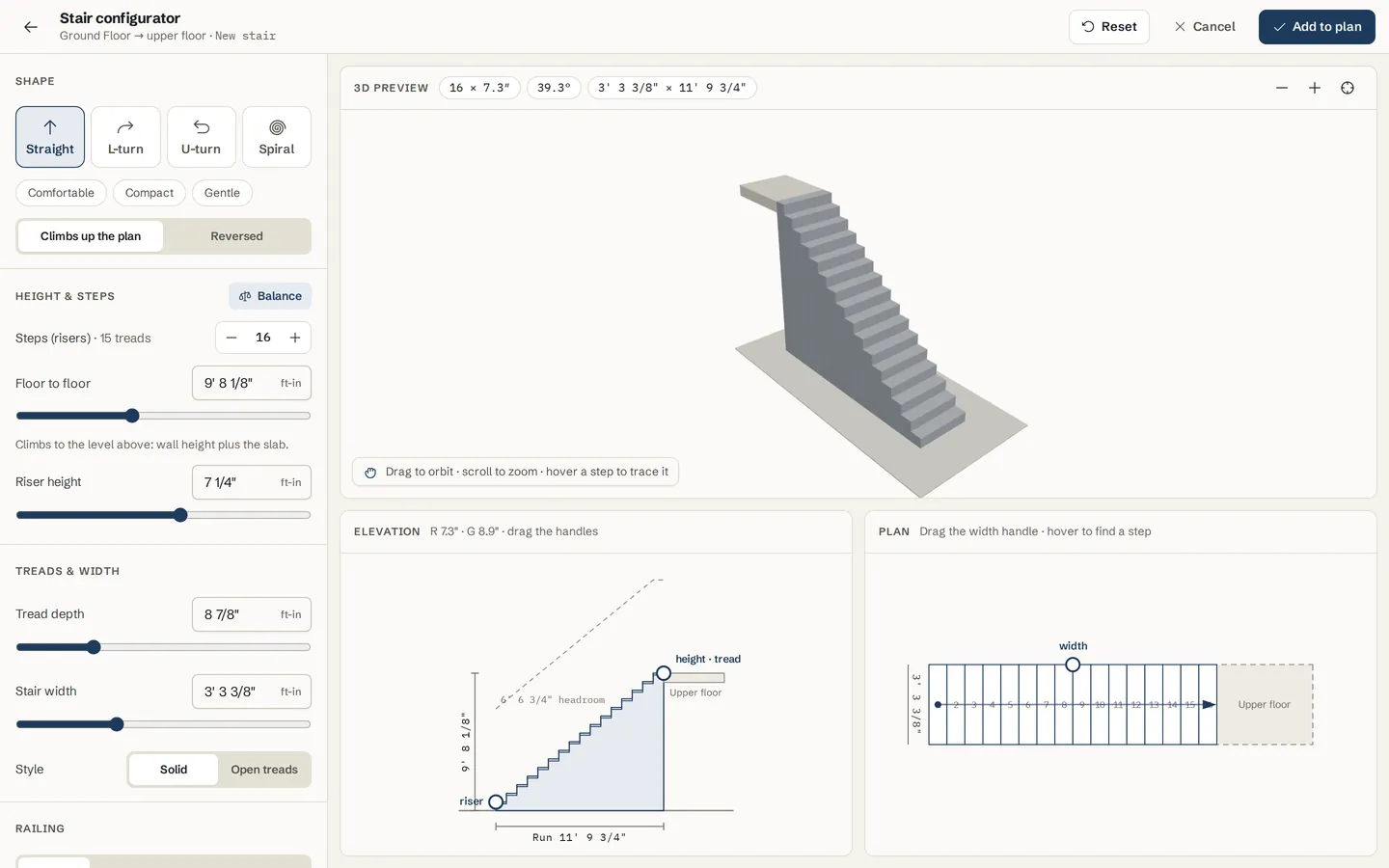

Stair configurator
Pick straight, L, U-turn or spiral stairs, set the floor-to-floor height and SpacePlanner works out the number of steps, riser height and tread depth, in 3D, elevation and plan views at once.
Free floor planner · 2D + 3D · No signup
Free online floor planner from one room to the whole house

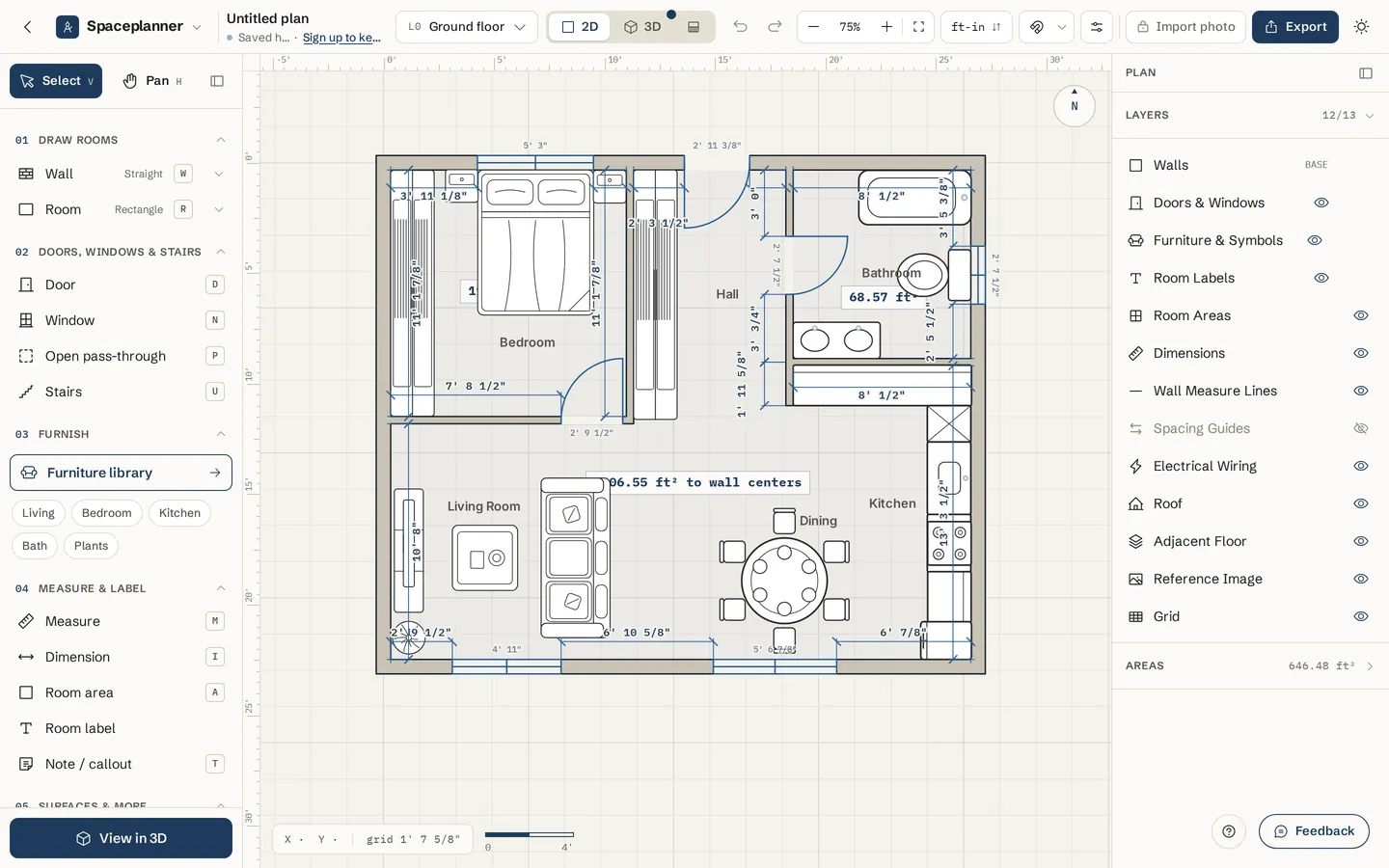

Draw every wall to its real length in your browser, or open a ready-made floor plan and change it. Add doors, windows and furniture, stack more floors with stairs and put a roof on top. Check it in 3D, then print it to scale.
4.6/5 average from 1,400+ in-app ratings
- Price
- Free
- To start
- No signup, no download
- Scope
- Rooms, floors, stairs, roofs
- Output
- PDF to scale, PNG, SVG, 3D
- Rating
- 4.6/5 from 1,400+
Step by step
How to draw a floor plan in 8 steps
The same order architects use: outline first, then openings, then rooms and furniture, then the levels above. Allow 30 to 60 minutes for a small house once you have measured it.
Step 1: Measure the outside walls first
Walk the outside or the inside faces of the external walls and measure each run. Then measure door and window widths and their distance from the nearest corner. Sketch it on paper as you go.
Step 2: Pick your units and draw the walls
Choose m, cm or ft-in. Press W and click corner to corner, or press R to drag a whole room. Click any wall to type its exact length. Curved walls and round rooms are there too.
Step 3: Add doors, windows and openings
Press D, N or P and click a wall. There are 114 door and window styles, from sliding doors to sash windows, plus open pass-throughs.
Step 4: Name the rooms and check the areas
Label each room and let SpacePlanner calculate its area. Add dimension lines (I) where you want a measurement printed on the plan.
Step 5: Furnish it
Open the furniture library (B) and place kitchens, bathrooms, beds and sofas. All 193 pieces are real-world sizes, so you can check fit as you go.
Step 6: Add floors, stairs and a roof
Add a floor above or a basement below from the floor switcher. Design the stairs in the stair configurator (7 styles, with steps and landings worked out), then press Shift+R for a hip, gable, shed or flat roof.

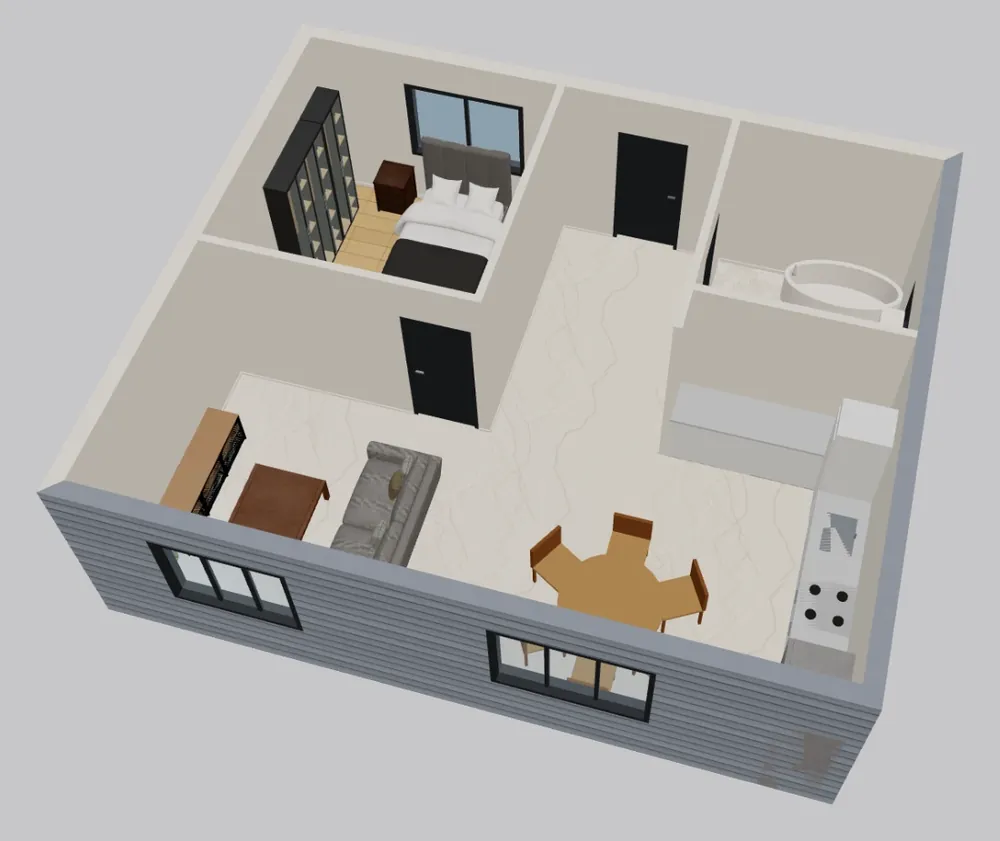

Step 7: Check it in 3D and elevations
Switch to 3D to orbit or walk through. Open Elevation to see the north, south, east and west faces of the building with the roof and windows in place.
Step 8: Export at scale
With a free account, export a vector PDF at 1:50 or 1:100 on A4 to A0 or Letter, with a scale bar and north arrow. Or export PNG, SVG, or a 3D model.
More than a 2D sketch
Floors, stairs, roofs and elevations in one floor planner
Most free floor planners stop at one flat level. SpacePlanner keeps going, so the plan you draw can describe the whole building.

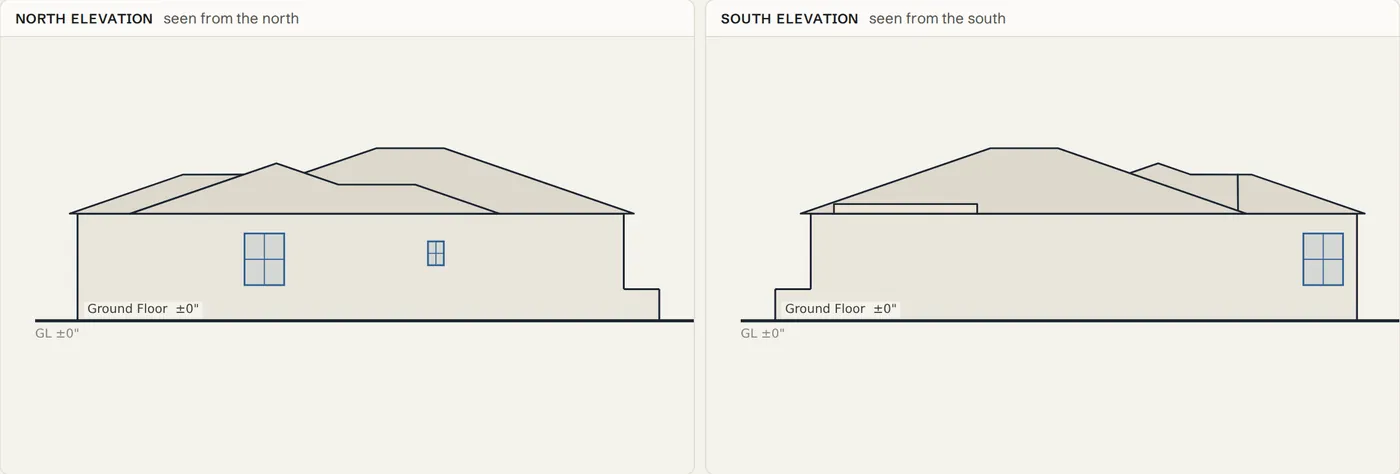

Elevations from your plan
North, south, east and west elevations are drawn from your walls, windows and roof automatically. Export them on their own or on the same sheet as the plans.

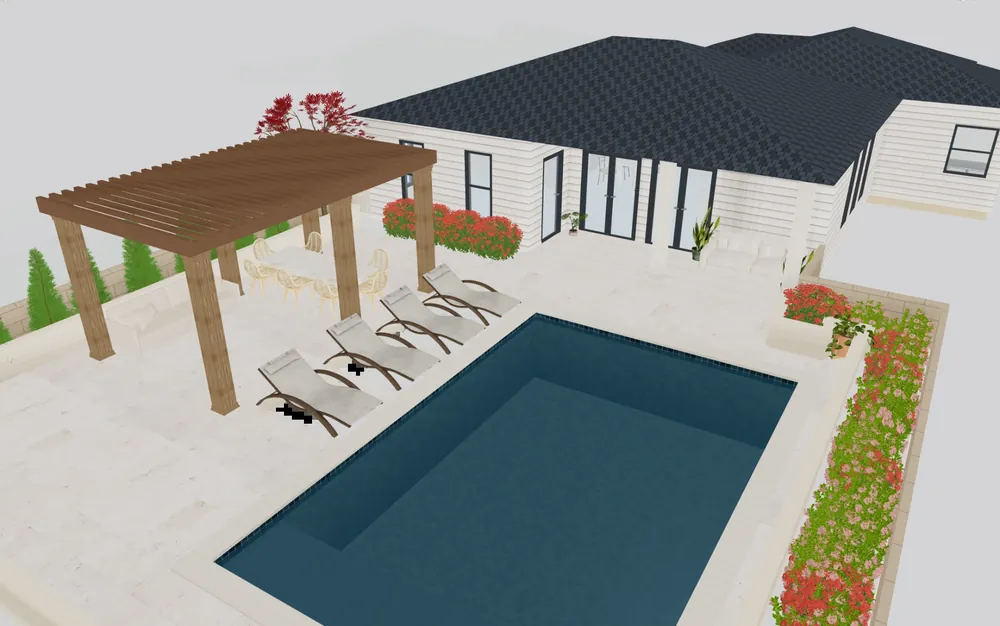

Roofs and outdoor space
Fit a hip, gable, shed, flat or pergola roof over your walls. Add terraces, a pool, planting and a lot boundary on the same plan.

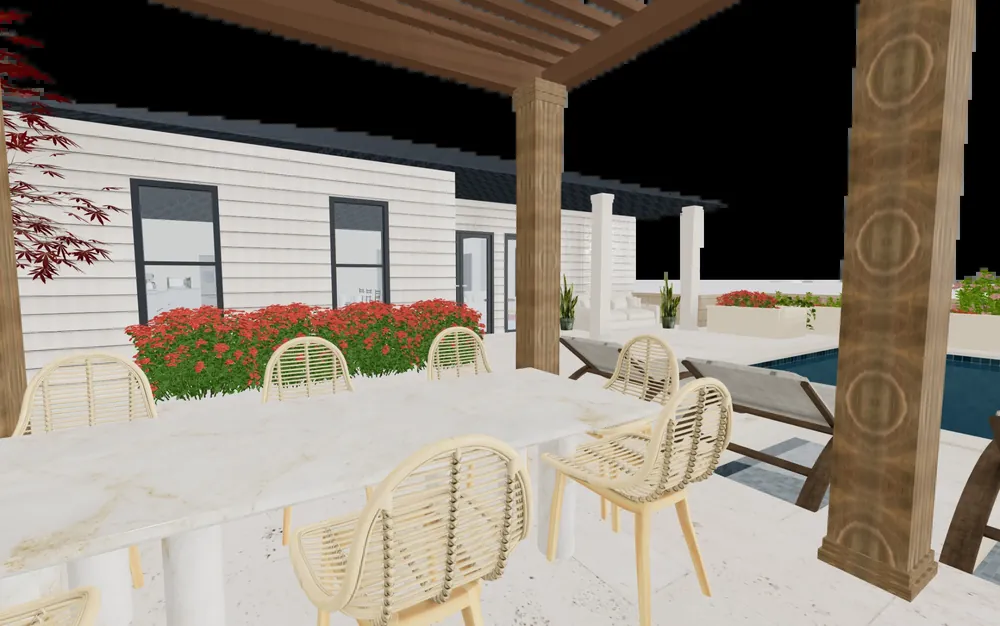

Walk through it at eye level
Switch to the walkthrough camera and stand in your own plan: under the pergola, in the kitchen, at the top of the stairs.

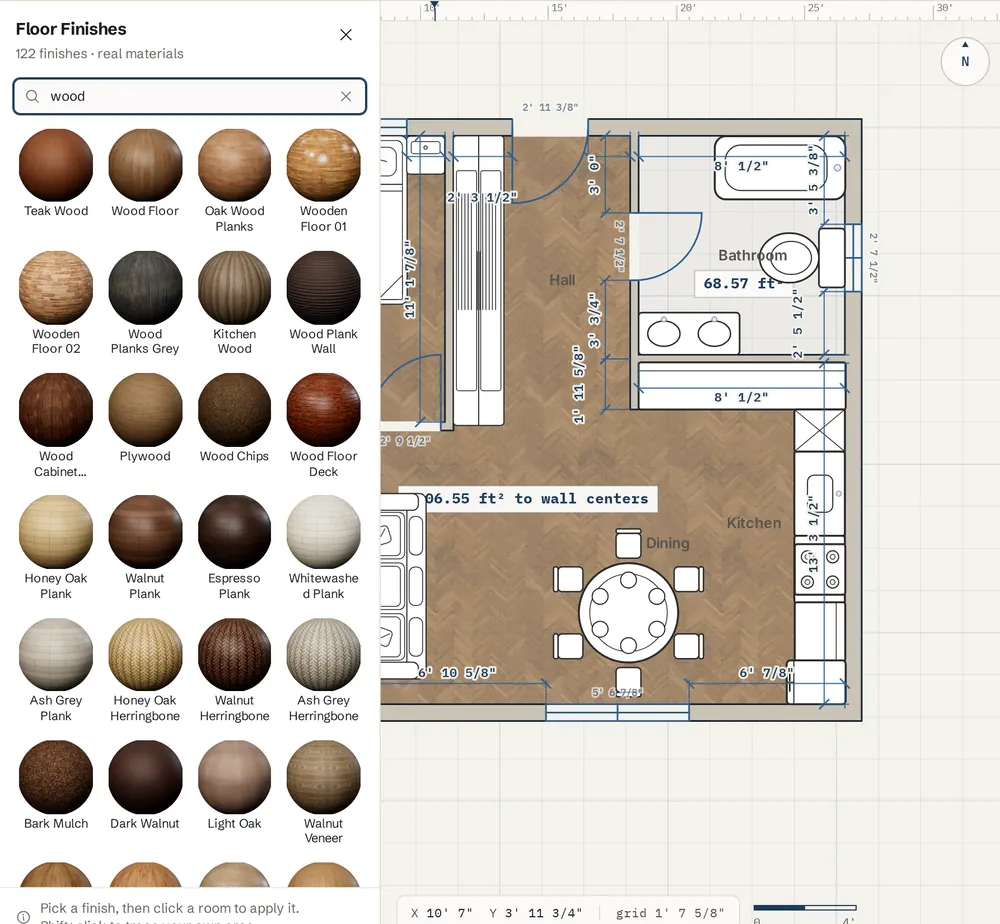

Finishes and materials
218 finishes, including 145 photo-real textures, previewed on spheres. One picker for floors, walls, stairs and furniture, shown on the plan and in 3D.
Reference
Standard floor plan dimensions and drawing scales
The sizes that come up on almost every floor plan. US figures follow the International Residential Code (IRC). Rules differ by country and change, so check your local building code before you build.
Standard dimensions
Scroll sideways to see every column
| Element | Metric | Imperial | Note |
|---|---|---|---|
| Interior partition wall | 10 to 15 cm | 4 to 6 in | Studs or blockwork plus finish on both sides. |
| Exterior wall | 20 to 35 cm | 8 to 14 in | Thicker with insulation or masonry. |
| Interior door leaf | 70 to 90 cm wide | 28 to 36 in wide | Common sizes: 80 cm in Europe, 32 in in the US. |
| Entrance door | 90 to 100 cm wide | 36 in wide | Wider helps with furniture and prams. |
| Hallway width | 90 cm min, 110 to 120 cm ideal | 36 in min, 42 to 48 in ideal | IRC minimum is 36 in (91 cm). |
| Ceiling height | 2.4 to 2.7 m | 8 to 9 ft | IRC minimum for habitable rooms is 7 ft (2.13 m). |
| Stair riser height | at most 19.6 cm | at most 7¾ in | IRC limit. The UK allows up to 22 cm on private stairs. |
| Stair tread depth | at least 25.4 cm | at least 10 in | IRC minimum, measured nose to nose. |
| Stair width | at least 91 cm | at least 36 in | IRC minimum clear width. |
| Window sill height | about 90 cm | about 36 in | Bedroom escape windows: sill no higher than 44 in (1.12 m) under the IRC. |
Which scale to print at
Scroll sideways to see every column
| Scale | On paper | Best for | Imperial equivalent |
|---|---|---|---|
| 1:20 | 1 cm = 20 cm | A kitchen or bathroom in detail | ½ in = 1 ft (1:24) |
| 1:50 | 1 cm = 50 cm | One room or a small flat, with furniture | ¼ in = 1 ft (1:48) |
| 1:100 | 1 cm = 1 m | A whole floor of a house | ⅛ in = 1 ft (1:96) |
| 1:200 | 1 cm = 2 m | A large house, or house and garden | 1/16 in = 1 ft (1:192) |
In SpacePlanner the PDF export tells you if the plan does not fit the sheet at the chosen scale and suggests a larger sheet or a smaller scale. How to read a floor plan
What it does
Floor planner features, matched to what you need
Pick the job you are doing. Each one maps to a tool in the editor.
“I have measurements to enter”
Exact dimensions
Type wall lengths in m, cm or ft-in. Live dimension lines, room areas, grid snap and a Measure tool keep every number honest.
“I have an old plan on paper”
Trace a photo or scan
Upload a photo or scan (free account), calibrate it with one known length, and draw your walls over it.
“My house has more than one level”
Floors and stairs
Stack floors and basements, see the floor below as a ghost while you draw, and connect levels with stairs that fit.
“I need to see it before I build”
3D, walkthrough and elevations
A live 3D model built from your plan, a first-person walkthrough and four elevations, all updating as you edit.
“I am planning the wiring”
Electrical layout
Place switches, sockets, lights and alarms and draw the wiring runs between them on their own layer.
“I need a drawing to hand over”
Scaled PDF export
Vector PDF sheets at true scale with a scale bar, north arrow and a schedule, in colour or black and white (free account).
Use cases
What people use the floor planner for
Same editor, different jobs. Each link goes to a page with templates and advice for that project.
Renovation and remodel
Draw what is there today, duplicate it, and try moving walls and doors before you call a builder.
Draw today, duplicate, try the change
House plannerNew build or extension
Lay out a new house or an extension across floors, with stairs, a roof and elevations to discuss with your architect.
Floors, stairs, roof and elevations
Multi-level plannerApartment or rental
Check a flat you are about to rent or buy: will your furniture fit, and where does everything go?
Check your furniture fits before you sign
Apartment templatesOffice and studio
Desks, meeting rooms and circulation for a small office, co-working space or workshop.
Desks, aisles and meeting rooms to scale
Office layout plannerHouse and garden together
Draw the house, the terrace and the garden on one plan, with the lot boundary around them.
House, terrace and lot boundary together
Floor plan with gardenOne room at a time
Only need a bedroom or a living room? The room planner focuses on furniture fit and clearances.
One room, in detail
Room planner
Honest comparison
Free vs paid floor planners
A free floor planner is enough for most home projects. Here is what you get with SpacePlanner, and where paid tools still earn their price.
Scroll sideways to see every column
| SpacePlanner | Typical freemium planner | Pro CAD / BIM software | |
|---|---|---|---|
| Cost | Free | Free tier, paid plans for more | Paid licence or subscription |
| Start without an account | Yes | Usually not | No |
| Runs in the browser | Yes, desktop and mobile | Often | Usually a desktop install |
| Multiple floors and stairs | Yes, with a stair configurator | Sometimes limited on free tiers | Yes |
| Roofs and elevations | Yes | Varies | Yes |
| PDF at true scale | Yes, 1:10 to 1:1000 (free account) | Often behind a paid plan | Yes |
| Photo-realistic renders | No. Export a 3D model to Blender or SketchUp | Often, usually paid | With add-ons |
| Construction documents and BIM | No. Plans and elevations for planning | No | Yes |
Freemium and CAD columns describe typical products, not any one brand. For permit drawings most places need a licensed professional whatever software is used.
What people say
From people drawing their own floor plans
45,000+ people have drawn their first wall in SpacePlanner since July 2026, and the in-app rating stands at 4.6 out of 5 from 1,400+ ratings.
4.6
1,400+ in-app ratings
“Really cool, its easier to build floor plans here than any other website i've found so far!”
“Found SpacePlanner through a Reddit comment. It's been super useful for planning a shared co-working space, honestly the best tool I found, simple and it just gets the job done.”
“great website, and above all its free and highly user friendly too. thanks”
Start from a plan
Start from a floor plan template
Every template opens in the floor planner as a new plan you can edit: walls, doors, windows, rooms and furniture already drawn to scale. Change the sizes to match yours or use it as a starting layout.
Family 2-bedroom apartment
76 m² (818 sq ft) · 2 bed · 1 floor
Open kitchen with island, a master bedroom, a kids room with bunk bed and a full bathroom.
Scandinavian 3-bedroom apartment
105 m² (1,130 sq ft) · 3 bed · 1 floor
A large living room with island kitchen, a master with ensuite and a utility room.
Modern farmhouse
280 m² (3,014 sq ft) · 4 bed · 2 floors
Two floors joined by a stair: great room, mudroom and study below, master suite above.
NYC brownstone
340 m² (3,660 sq ft) · 4 bed · 4 floors
Four floors on one straight stair, from the garden level kitchen to the top floor bedrooms.
FAQ
Floor planner questions
Is this floor planner free?
Yes. Drawing a floor plan with walls, doors, windows, furniture, a roof and a 3D view is free, with no signup and nothing to download. A free account, also free, adds more floors and basements, saves plans to your account, exports files and creates share links.
How do I draw a floor plan with exact measurements?
Measure each wall, choose metres, centimetres or feet and inches, then draw with the Wall tool (W) or the Room tool (R). Click any wall and type its length. Dimension lines and room areas update as you go.
Can I add a second floor and stairs?
Yes. Add a floor above or a basement below from the floor switcher at the top of the editor. The floor below shows faintly while you draw, and the stair configurator works out the steps and landing between the two levels.
Can I add a roof?
Yes. Press Shift+R, choose to use your walls or draw the outline, then pick a hip, gable, shed, flat or pergola roof and set the pitch and overhang. The roof shows in 3D and in the elevations.
Can I export a floor plan to PDF at scale?
Yes, with a free account. Choose PDF, a paper size from A4 to A0 or Letter, and a true scale such as 1:50 or 1:100. The sheet includes a scale bar and a north arrow, and can be black and white for printing. Several floors can go on separate pages or one sheet.

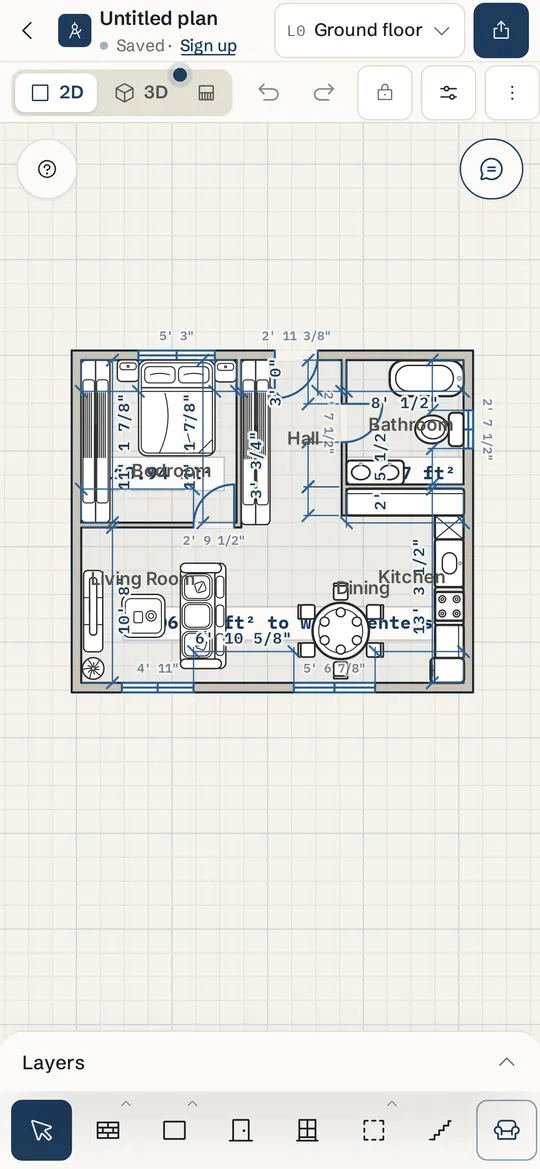

Does the floor planner work on mobile?
Yes. It runs in the browser on phones and tablets as well as desktop, with a touch toolbar on small screens. For a whole house a larger screen is more comfortable.
Can I trace an existing floor plan?
Yes. With a free account, import a photo or scan of a plan, set its scale from one known length, lower its opacity and draw the walls over it.
Can I use it for building permit drawings?
SpacePlanner gives you scaled plans and elevations that are ideal for planning and for briefing an architect or builder. Most permit applications need drawings prepared or checked by a licensed professional, so check with your local authority.
Draw your floor plan now
Open the editor, type in your measurements and build it floor by floor. Free, in your browser, no signup to start.
